Elevator Guide Rail Clips

About Elevator Guide Rail Clips

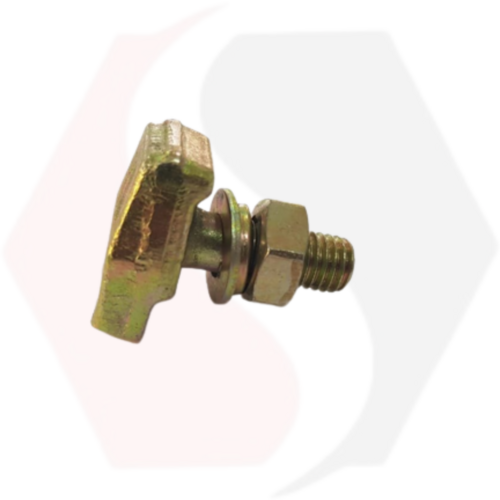

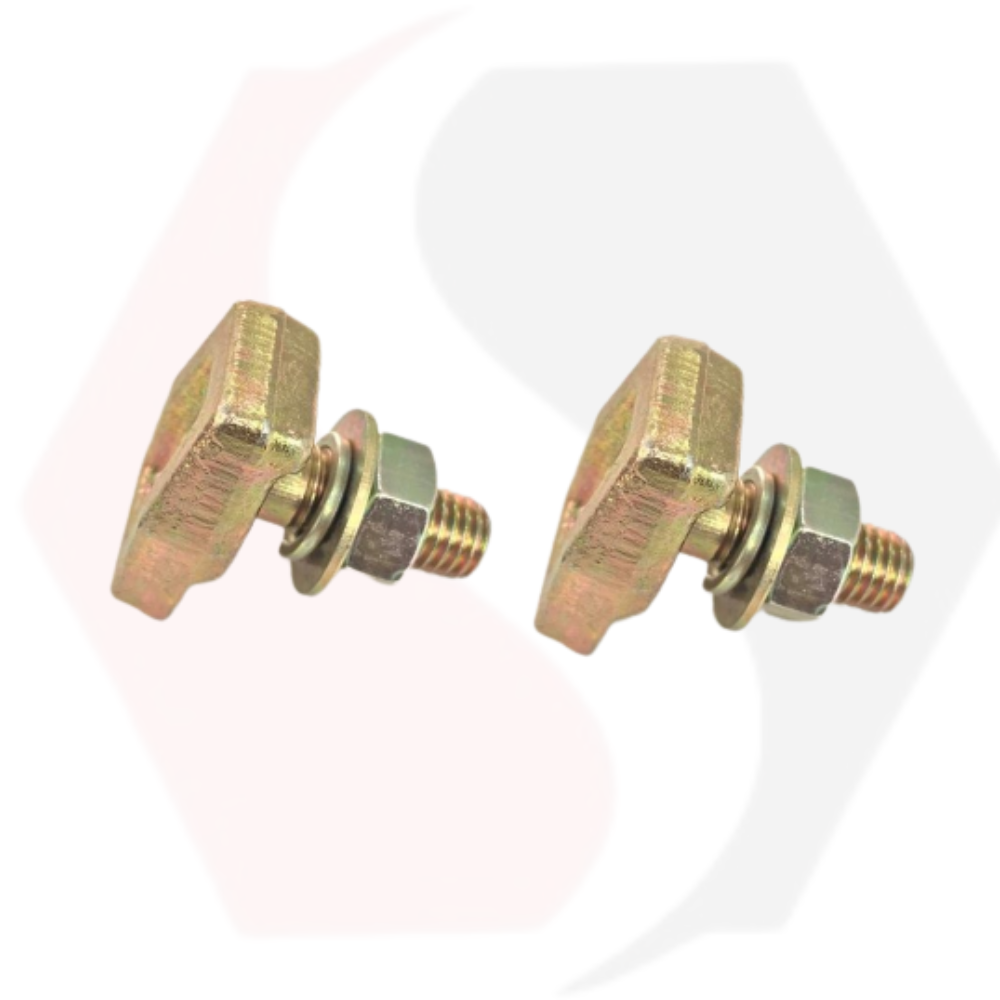

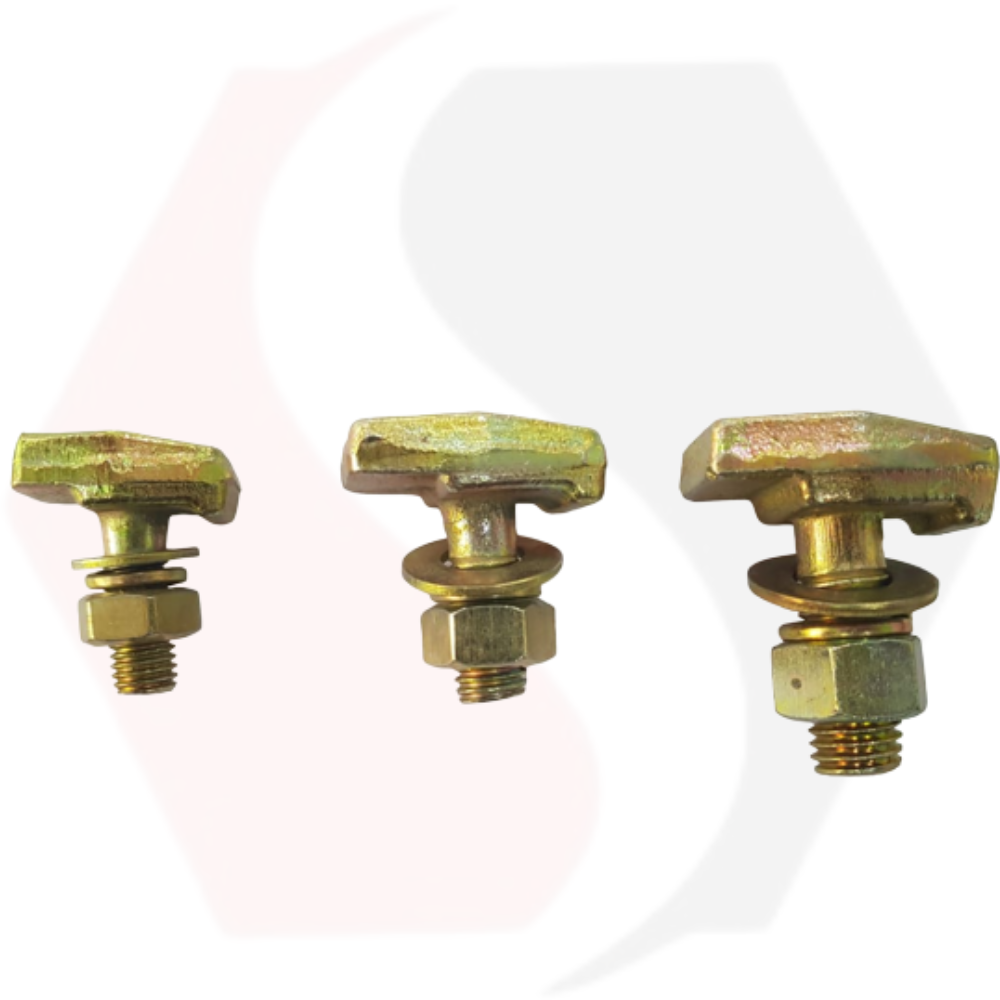

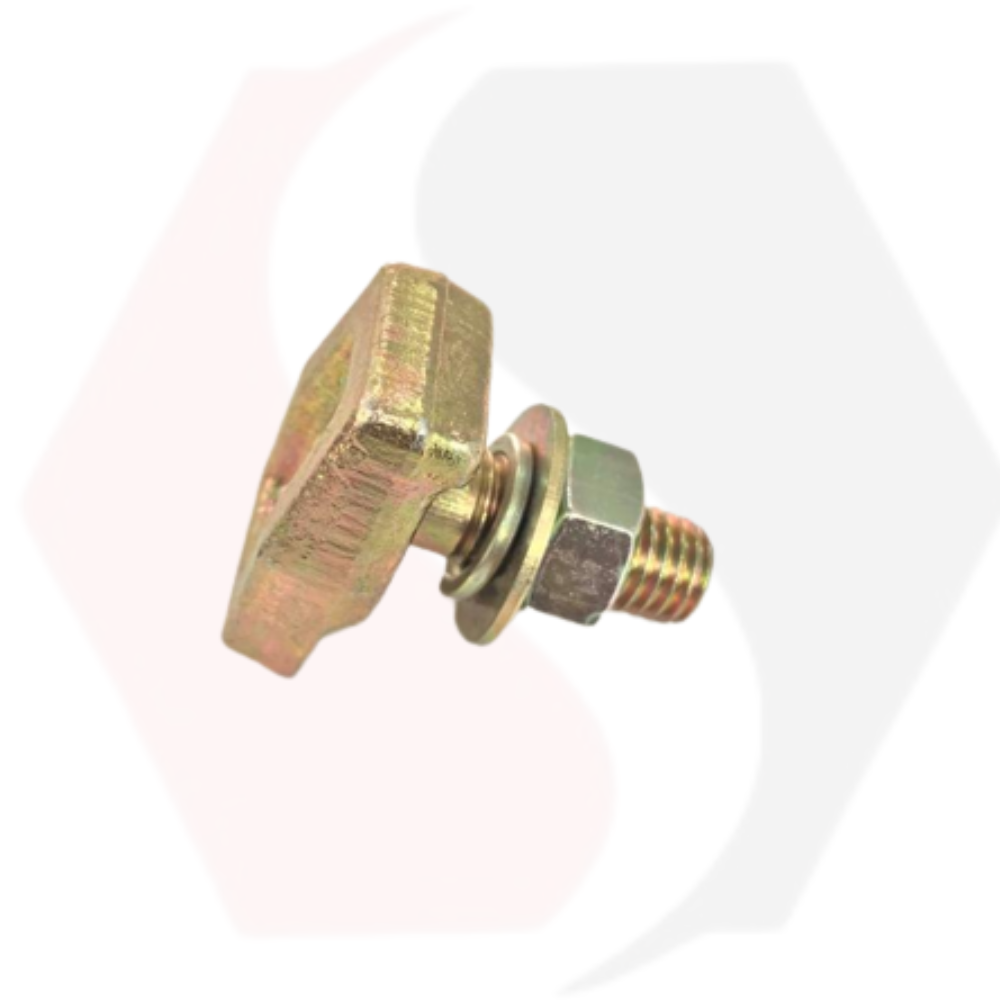

The Elevator Rail Guide Clip (often also called a rail fixing clip or rail bracket) is a mechanical component used to securely fix the elevator guide rails to the building structure or shaft wall. It plays a critical role in maintaining the safety, stability, and alignment of the elevator system.

A Rail Guide Clip is a steel or cast-iron bracket that fastens the elevator guide rails (either T-rails or hollow rails) to the shaft wall or building structure, ensuring they remain straight and rigid during elevator movement.

• In the hoist way (shaft) of the elevator system.

• Installed at regular intervals (typically every 1.5“2 meters or as per local code and manufacturer recommendations).

• Connects the guide rail to support brackets or inserts in the shaft wall.
