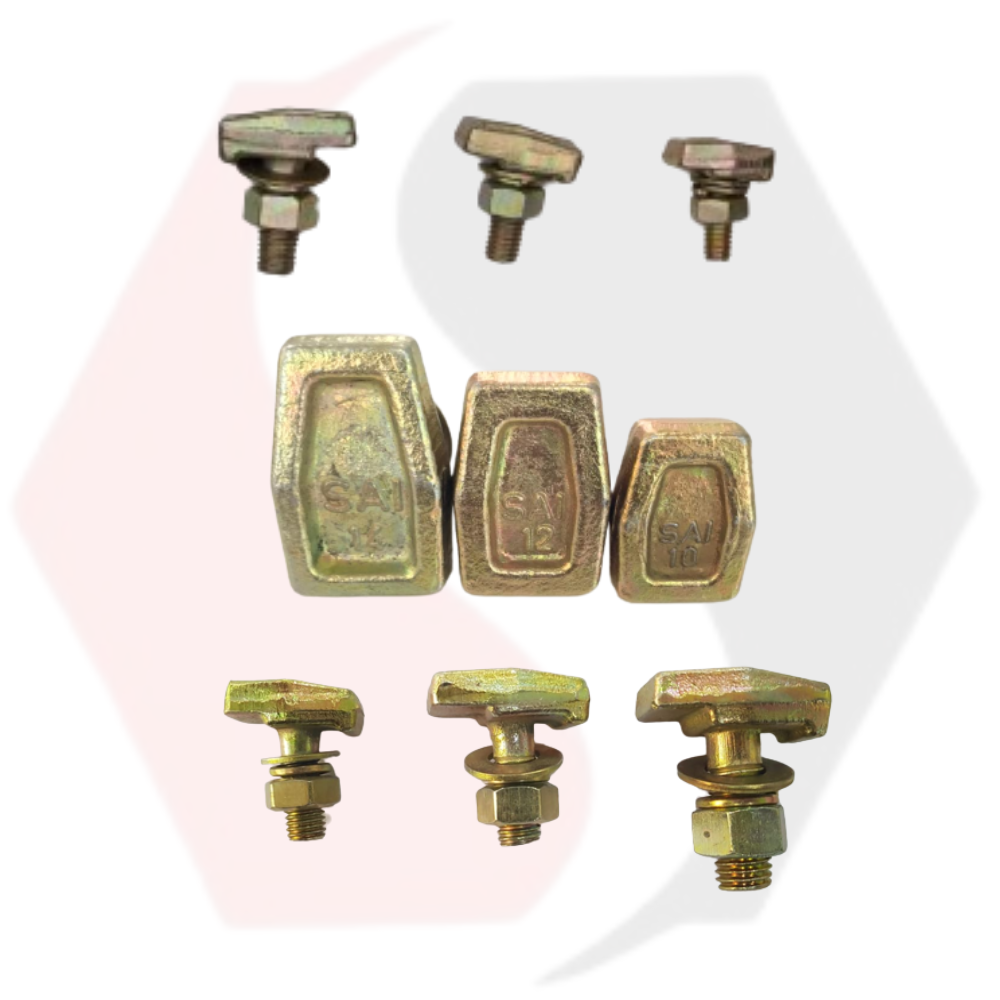

Forged Guide Rail Clip

About Forged Guide Rail Clip

A Forged Guide Rail Clip is a heavy-duty mechanical fastener used to securely hold elevator guide rails in place within the elevator shaft (hoistway). It is specifically forged from high-strength steel, making it exceptionally durable and suitable for high-load applications, such as high-rise or freight elevators.

• Forged Base Bracket: Attaches to the embedded rail support in the shaft.

• Forged Clamp Plate: Holds the guide rail flange tightly.

• Bolts/Nuts/Washers: Typically high-strength bolts (grade 8.8 or above) to maintain clamping force.

• Optional Rubber Pads or Insulators: For vibration and noise dampening.

•


• • Should be spaced according to local code (typically every 1.5 2 meters).

  • Requires correct torque application on bolts to ensure safe clamping.

  • Must be installed with precise rail alignment using plumb tools or laser alignment systems.
