Wire Rope Clips

About Wire Rope Clips

Wire rope clips, also known as wire rope clamps or cable clamps, are mechanical devices used to secure the ends of a wire rope, creating loops or terminations. These clips are essential in applications where the wire rope needs to be looped back on itself, for example in rigging, lifting, or towing applications.

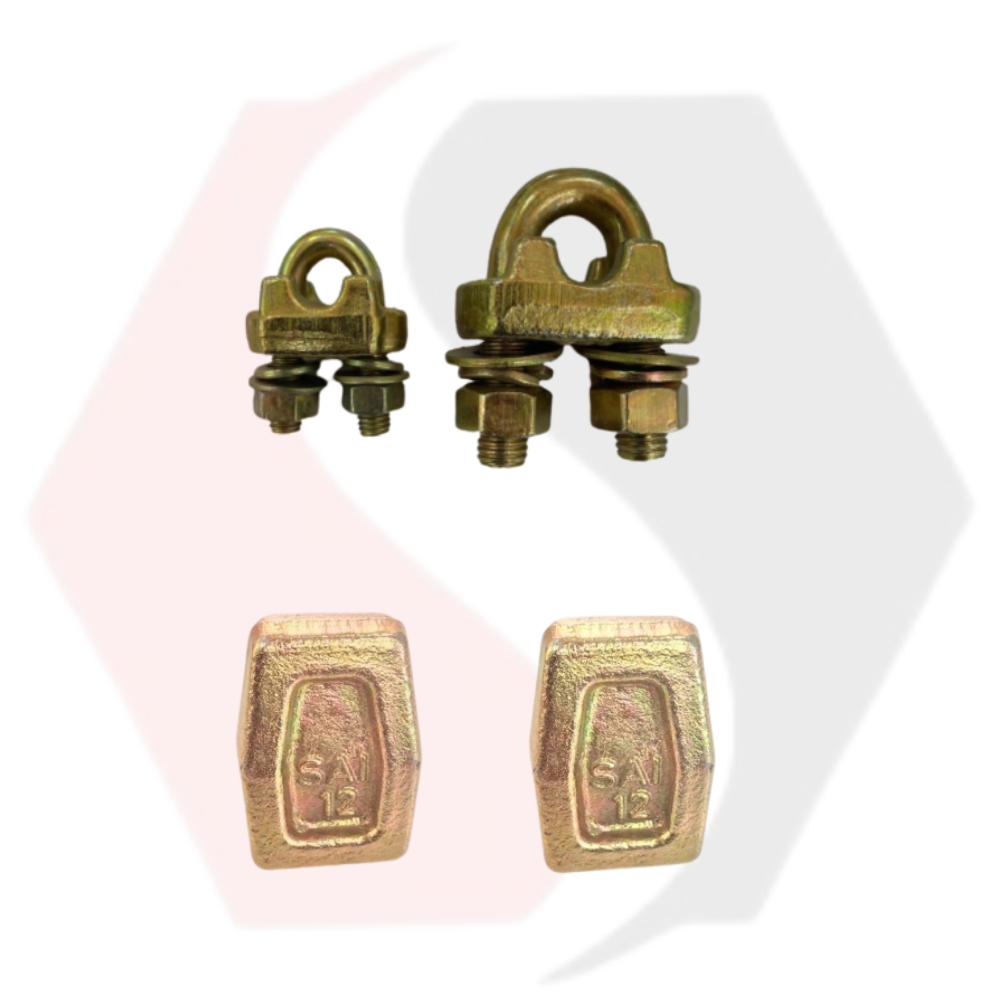

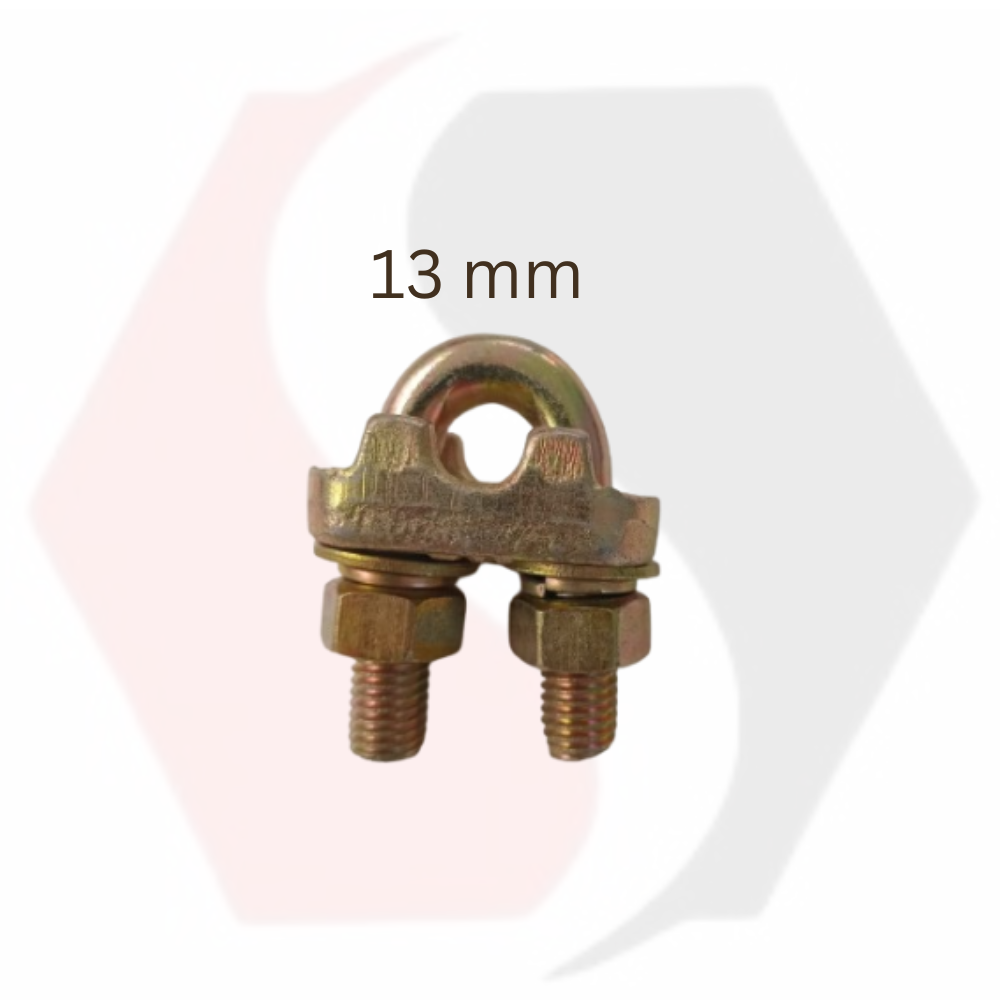

Wire rope clips consist of several components, including a U-bolt, clamp body (clips), and nuts. When installed correctly, wire rope clips create a strong, secure connection that can safely handle the loads the rope is subjected to.

• U-Bolt: This is the "U"-shaped piece of metal that wraps around the wire rope.

• Clip (Body): A metal clamp that fits over the rope to secure it tightly around the U-bolt.

• Nuts: These are threaded onto the U-bolt to secure the clamp in place and tighten the rope.

• Looping the Rope: To make a loop, the wire rope is passed through the U-bolt. The clamp body then fits over the rope and U-bolt, with the nuts tightened to create the loop.

• Securing the Rope: The nuts are tightened with a wrench to compress the rope and secure the loop. This prevents any slippage or movement at the termination point.

• Multiple Clips: Typically, at least two clips are used per termination to ensure the rope remains securely fastened. The first clip is placed near the end of the rope, while the second clip is placed further up the loop to evenly distribute the load.
