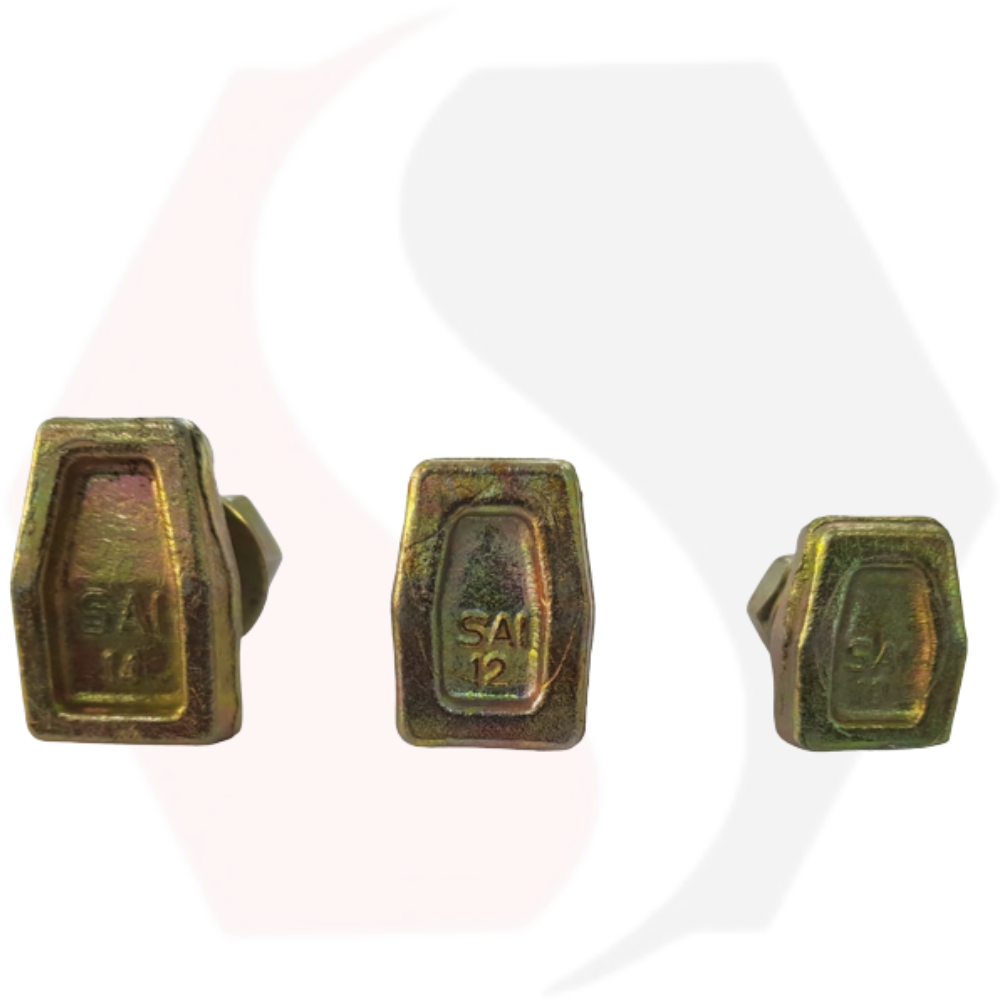

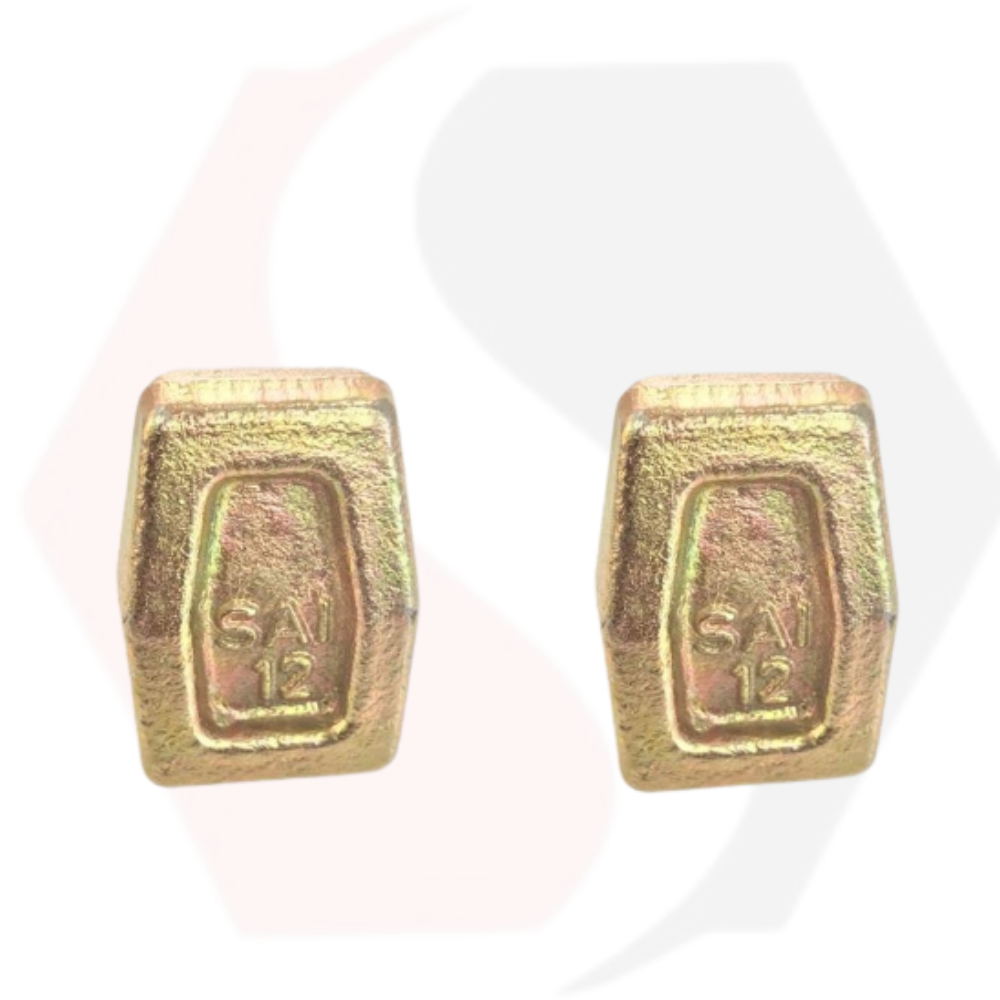

Elevator Guide Rail Clip

About Elevator Guide Rail Clip

An elevator guide rail clip is an essential part that helps secure the guide rails within the elevator shaft. These clips ensure the stability and proper alignment of the guide rails, which the elevator car and counterweight travel along.

1. Stabilization: It holds the guide rails firmly in place to prevent any movement or shifting during the elevator's operation.

2. Alignment: It helps to keep the guide rails aligned with the elevator's path, ensuring smooth and stable travel of the car.

3. Safety: The clip contributes to the safety of the elevator by preventing rail displacement, which could cause the car to misalign or malfunction.

4. Vibration Control: It can absorb some vibration and reduce noise caused by the friction between the guide rails and the elevator components.

5.

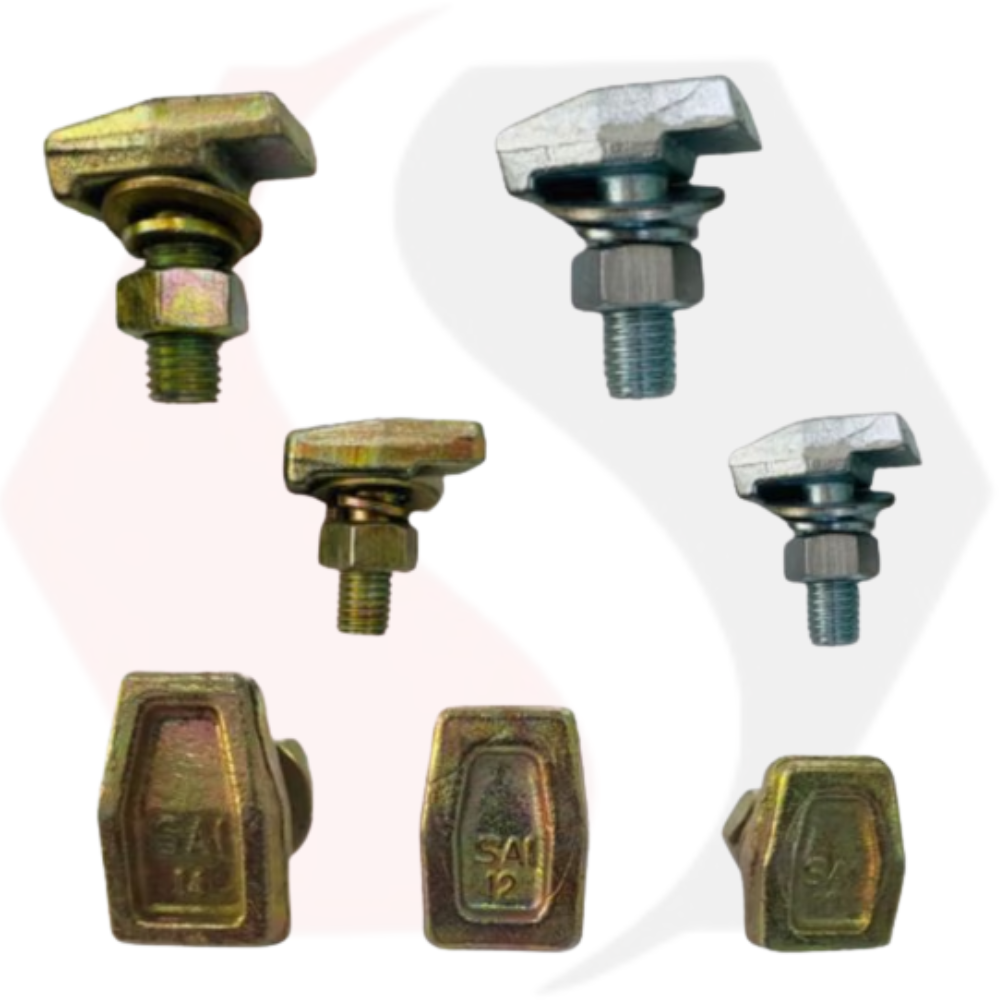

Components of a Guide Rail Clip:

• Clip Housing: The part that wraps around the guide rail.

• Bolt or Fasteners: Secure the clip to the guide rail or the shaft.

• Spring or Cushioning Mechanism: Some clips have a spring or cushioning system to provide flexibility and absorb vibrations.

• Guide Rail Contact Surface: The area that makes contact with the guide rail itself.
