Forged Jaw End Fitting ,

About Forged Jaw End Fitting ,

A Forged Jaw End Fitting is a robust end connection made from high-strength steel or stainless steel through a forging process, which enhances its mechanical properties, ensuring excellent strength, ductility, and fatigue resistance.

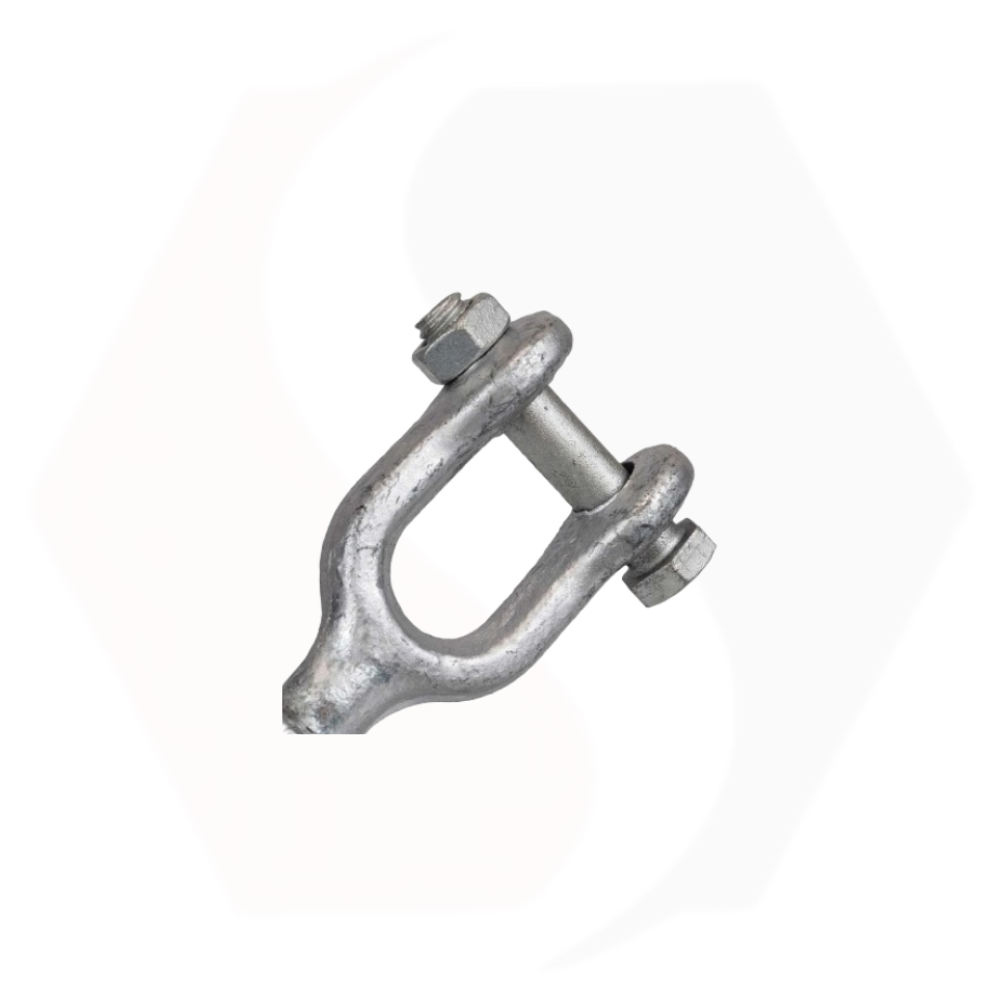

The fitting consists of a U-shaped clevis (jaw) with two parallel ears and a clevis pin hole at the open end, allowing it to be connected to another component such as an eye, plate, or another fitting. The opposite end is typically threaded (male or female) to connect to rods, turnbuckles, or cable assemblies.

*Key Features*

*Material  steel, alloy steel, or Mild steel

*Manufacturing Drop-forged for superior strength and reliability.

*Finish Galvanized, zinc-plated, or polished depending on environmental requirements.

*Thread Options UNC, UNF, or metric threads (right-hand or left-hand).

*Pin Type Clevis pin with cotter pin or bolt and nut arrangement.

*Sizes Available in a range of sizes to match various rod or cable diameters.

*Applications*

* Structural tie rod systems

* Marine and offshore rigging

* Lifting and hoisting assemblies

* Architectural tension structures

* Turnbuckle assemblies for bracing or guying

*Forged Jaw End Fitting, Carbon Steel, Hot-Dip Galvanized*

 Drop-forged steel jaw with precision-machined clevis and threaded shank. Designed for use with turnbuckles and tie rod assemblies. Supplied complete with clevis pin and cotter pin. Available in right-hand and left-hand threads, sizes M12 to M48.
